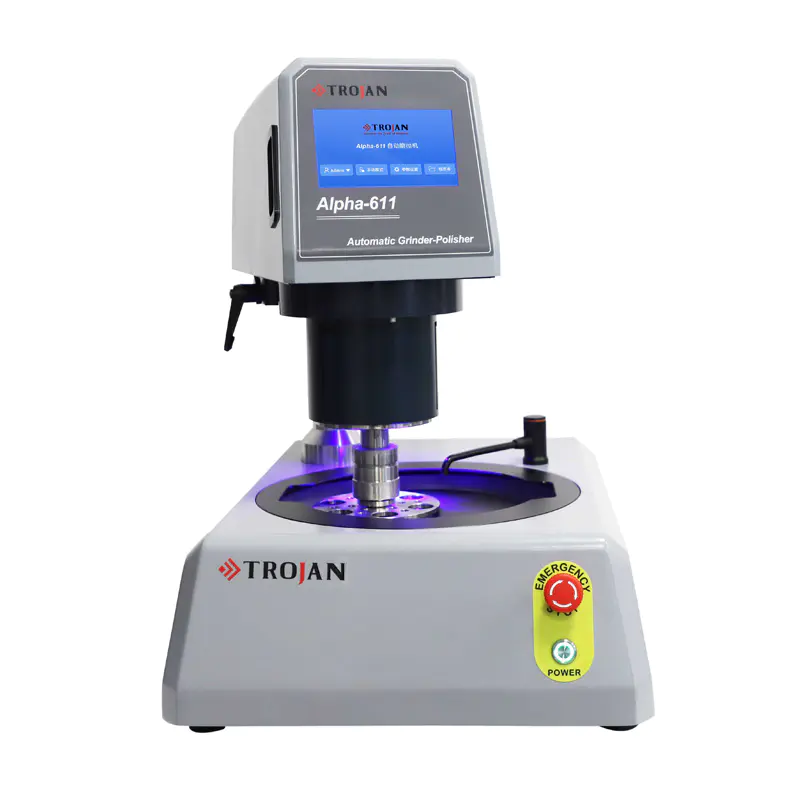

Trojan Alpha-611 Automatic Grinder and Polisher

Quantitative Grinding: No

Accuracy: /

Quantity: Single-disc

Size: 10" / 12"

Panel: Touch Panel

Individual Loading Capacity: 6

Central Loading Capacity: 6 (9)

Maximum sample diameter: 50 mm

Liquid Dispensing (Optional): 4 or 8

Features

1. Cast aluminum shell, SMC standard loading cylinder, designed to be more reliable and durable;

2. 7-inch touch screen panel, the interface is simple and easy to understand;

3. Adopt two-hand protection button to control the lifting and lowering of the clamping platen;

4. Two pressurization modes: Central Pressure Loading and Individual Pressure Loading;

5. Dripping system with 4 sets of peristaltic pumps is available;

6. Built-in 20 groups of common grinding and polishing process parameters and user-defined parameters can also be stored;

7. Large diameter side drainage system, not easy to block and drain quickly;

8. Pluggable faucet facilitates cleaning and maintenance of the disk;

9. Built-in automatic temperature-sensing cooling fan to reduce failure rate and enhance working life.
