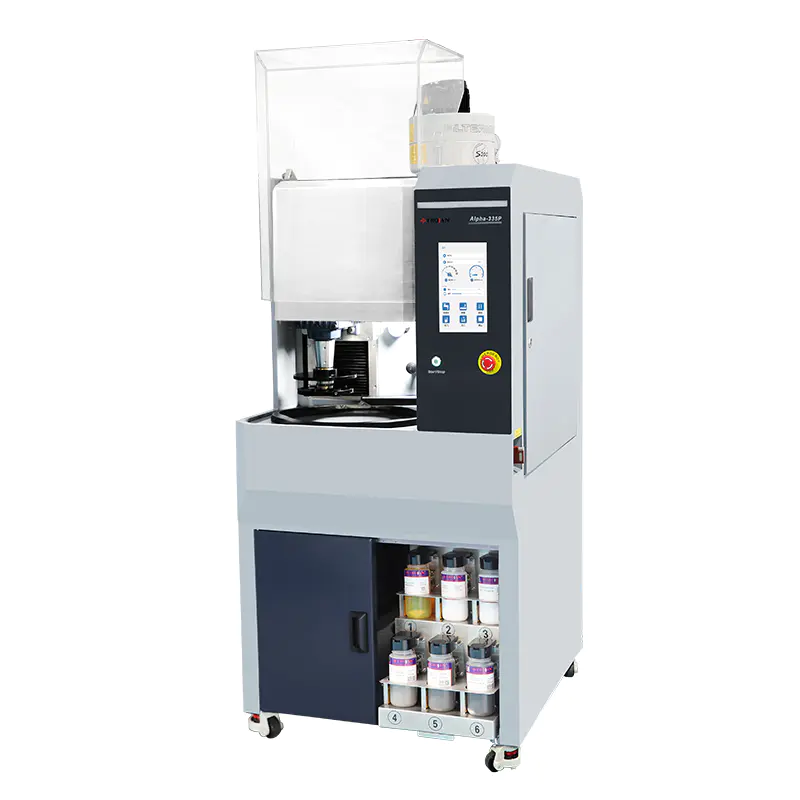

Trojan Alpha-335P Grinding and polishing machine

Disc:

Diameter: 300 mm / 350 mm

Speed: 10–1000 rpm

Rotational Speed: Counter-clockwise

Motor Power (S1): 2.2 kW

Specimen Holder:

Diameter: 160 mm (180 mm Optional)

Maximum sample height: 40 mm

Force: 50–700 N

Speed: 10–125 rpm

Rotational Speed: Clockwise / Counterclockwise

Motor Power: 0.37 kW

Torque: 17 Nm

Offset distance: 0–80 mm

Drip System:

Quantity: 6 sets

Flow rate: 0.1–35 mL/min

Volume: 500 mL

Mixing + high flow rate: 3 sets

Removal Control:

Accuracy: 0.1 mm

Removal: 0.1–10 mm

Features：

Sample clamping and grinding system

1. The sample holder and clamping head are positioned by ball bearings, and the pin spring is reset to achieve stable clamping

of the sample holder. The installation operation is simple and convenient;

2. The work disc adopts a soft positioning card sleeve structure,which can be easily disassembled.

Display system

1. Simple operation interface, easy to operate on the machine after simple training;

2. Three color light warning prompt, easy to find faults and save maintenance time.

Dosing device

Equipped with six sets of liquid addition pump devices and three sets of electromagnetic stirring functions to prevent suspension sedimentation. The optimal distribution of suspension and lubricant is achieved through the liquid addition

nozzle to achieve the best grinding state.

Operating system

1. 10-inch LCD touch screen panel,real-time display of current program dynamics on the LCD screen, simple and easy to understand, convenient and fast operation and settings;

2. Customize the program library to save and call program methods at any time, with simple and convenient operation.

Wokring disc

Provide grinding and polishing discs with different specifications to meet the sample preparation needs of different materials.
