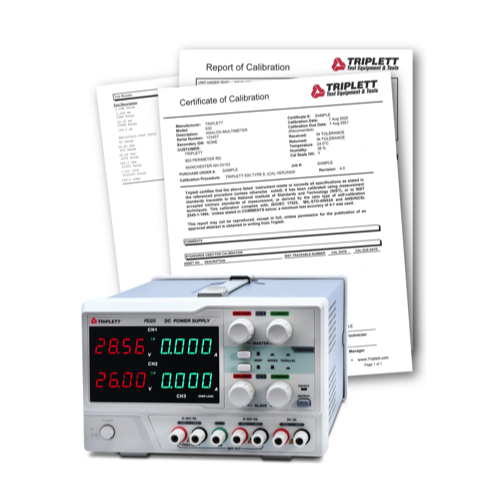

Triplett PS325-NIST Triple Channel Linear DC Power Supply (335W; 3CH; With Cert of Traceability to N.I.S.T)

Channel 1 & 2 Output Voltage: 0 to 32.00V

Channel 1 & 2 Output Current: 0 to 5.000A

Channel 3 Output Voltage: 5.00V fixed

Channel 3 Output Current: 3.000A fixed

Resolution: 10mV; 1mA

Output Power: 335W

Load Regulation: <0.01% + 3mV, <0.2% + 3mA

Output Regulation: 10mV, 1mA (typical)

Ripple and noise: ≤1mVrms, ≤3mArms

Display: Quad 4-Digit LED (voltage and current)

Power: 115/230VAC, 47-63Hz

Dimensions: 12.5 x 5.8 x 8.9" (319 x 146 x 226mm)

Weight: 23lbs (10.5kg)
