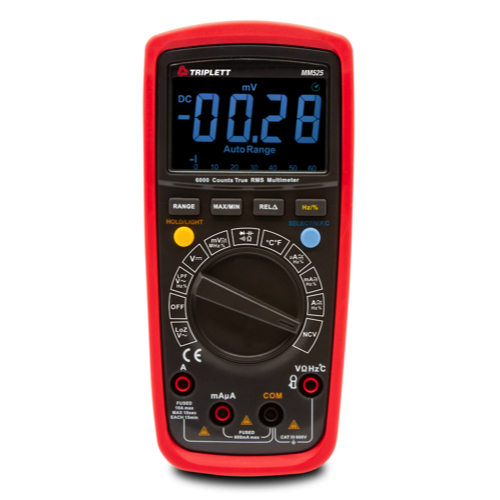

Triplett MM525 True RMS DMM with LPF and LoZ (60MΩ; 600V, 10A, True RMS)

Display counts: 6000 count EBTN w/bargraph

Basic Accuracy: ±0.7%

AC/DC Voltage: 600V

AC/DC Current: 10A

AC/DC µA Current: 600μΑ

Resistance: 60ΜΩ

Temperature: -40 to 1832°F (-40 to 1000°C)

Capacitance: 100mF

Frequency: 10MHz

Duty Cycle: 0.1 to 99.9%

Continuity: <50Ω

Lo Pass Filter (LPF): Yes

LoZ: Yes

NCV Detector: Yes

Clamp Adapter Input: _

Safety Category: CAT III-600V

Dimensions: 6.9 x 3.2 x 1.9" (175 x 81 x 48.5mm)

Weight: 12.2oz. (345g)
