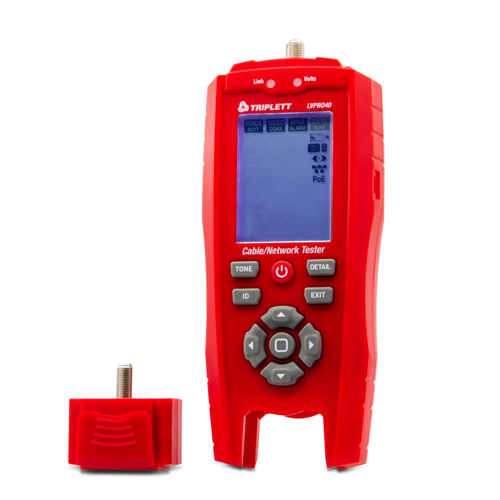

Triplett LVPRO40 Multifunctional Low Voltage Cable/Network Tester (1999ft (610m))

Cable Types:

UTP, FTP and SSTP twisted pair, telephone, speaker and alarm wire

50Ω, 75Ω, 93Ω coax cable

Cable Tests: Opens, shorts, reversals, split pairs, wiremap, propagation delay, skew, ohms Feet/metric selectable

Cable Length Test: Range: 1999ft (610m) Resolution: 1.5ft (0.5m)

Adjustable and standard VOP settings

RLQ (Return Loss Quality)

Accuracy: ±(2% + 3ft/1m)

Network Devices: 10M/100M/1G/10G advertised speed and cable pairs used

PoE pairs and cable pairs used

CCTV camera video signal: measure peak to peak volts

CATV (cable TV) requires min 30mV peak to peak signal

Battery test: 100mA loaded test for 12V alarm

POE detection: POE standards: 802.3AF, 802.3AT, 802.3BT

Ethernet Port Test: Yes

Cable Location: Yes

Port Blink: Lights the LED on the port switch

Power: (3) AA batteries

Dimensions: 7.1 x 3.2 x 1.5” (181 x 81 x 37.2mm)

Weight: 9.2oz (260g)
