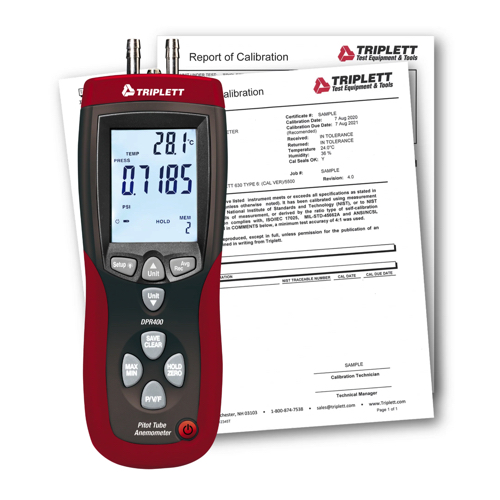

Triplett DPR400-NIST Differential Pressure, Airflow and Pitot Tube Meter (With Cert of Traceability to N.I.S.T; 10psi, 1~ 80m/s)

Manometer

Range (resolution)

0.7252psi (0.0001psi)

50.00mbar (0.01mbar)

20.07inH2O (0.01inH2O)

509.8mmH2O (0.1mmH2O)

5000Pa (1Pa)

Accuracy: ±0.3% FSO

Max. Pressure: 10psi

Air Velocity:

Range (resolution)

200 to 15733ft/min (1ft/min)

1.00 to 80.00m/s (0.01m/s)

3.6 to 288.0km/h (0.1km/h)

2.24 to 178.66mph (0.01mph)

2.0 to 154.6 knots (0.1 knots)

Accuracy: ±2.5%

Air Flow:

Range (resolution)

0 to 99.999CFM (0.0001CFM)

0 to 99.999CMM (0.001CMM)

Air Temperature: 32 to 122°F/0 to 50°C (0.1°F/°C)

Accuracy: ±2°F/1°C

PC Interface: USB

Data Acquisition: Real-Time data viewed on your PC

Power: 9V battery

Meter Dimensions: 8 x 3 x 2" (203 x 75 x 50mm)

Weight: 10.6oz (300g)

Pitot Tube Dimensions: 13 x 8" (329 x 201mm)

Pitot Tube Diameter: 0.3" (8mm)

Weight: 5.3oz (150g)
