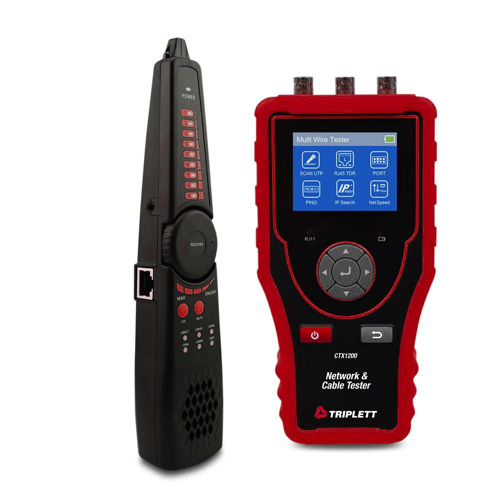

Triplett CTX1200 Network & Cable Tester With Probe (320x240; 1.2km)

Display: 2.4 inch TFT-LCD screen , 320x240 resolution

UTP Cable Test: Test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector

Cable Type: RJ45 Twisted pair, RJ11 telephone line, BNC cable

RJ45 Connector Fault: Can determine the fault point of RJ45 cable connector from Local/Remote indicator light

TDR Cable Test: Tests for opens, shorts and length (1.2km max) on UTP, CAT 6e/5e, BNC and telephone line cable

RJ45 TDR Cable Test: Test cable pair status, length, attenuation, reflectivity, impedance, skew (180m max)

Port Flash: Sends a unique signal to make the connected LAN port of the switch flash

Ping Test: Check to see if the IP camera's Ethernet port is working normally and if the IP address is correct.

IP Scan: Quickly find the IP address of the camera or other network equipment which connected to the meter

Link Monitor: Quickly identify connected network port speed (10/100/1000M), and detect duplex mode (full or half)

Video Level Meter Test: Detects the peak, sync and burst level of TVI, CVI, AHD, CVBS video signals in real time

Power:

Meter: 5V/1A AC adapter or 3.7V Li-on battery

Tracer Probe: 2 AA batteries (not included)

Dimensions: 5 x 3.3 x 1.3" (126 x 83 x 33mm)

Weight: 12oz (340g)
