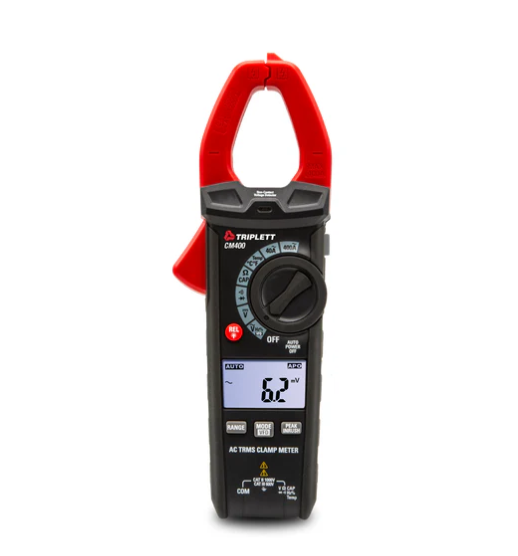

Triplett CM400 AC Clamp Meter (400A AC, True RMS)

True RMS

Display counts: 4000 count

AC Current: 400A

ACA Accuracy: ±2.5%

AC/DC Voltage: 1000V

Resistance: 40MΩ

Temperature: -4 to 1832°F(-20 to 1000°C)

Capacitance: 100mF

Frequency: 100kHz

Duty Cycle: 20.0 to 80.0%

Continuity: <50Ω

Lo Pass Filter (LPF): Yes

NCV Detector: >90V

Inrush Current: 100ms

Safety Category: CAT III-600V

Dimensions: 8.8 x 3 x 1.6" (223.8 x 76.5 x 39.4mm)

Weight: 9.5oz (268.3g)
