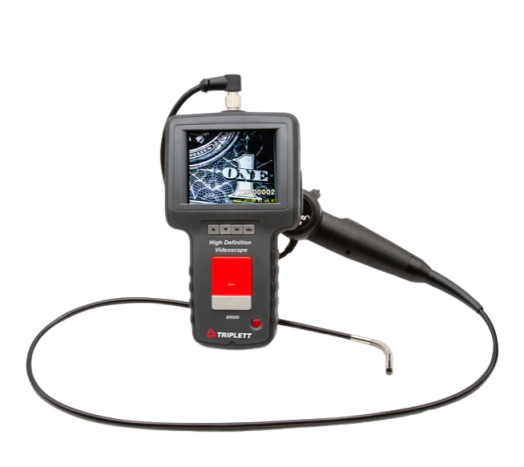

Triplett BR500 3.5" High Definition Articulating Videoscope (640 x 480 pixel, 60°)

Diameter: 6mm

Field of View: 60°

Depth of View: 0.8~2.4” (20~60mm)

Resolution: 640 x 480 pixels

Articulation: 270° (135° left, 135° right)

Display Unit

Display: 3.5” Color TFT (320 x 240 pixels)

Interface: mini USB/AV output

Video Output Format: NTSC or PAL

Storage: 8G SD Card included (up to 16GB max)

Still Image Format: JPEG (640 x 480)

Video Recording Format: ASF (640 x 480)

Power: 3.7V Li-Po Battery or AC Adapter

Dimensions (Main Unit): 8.5 x 4.5 x 1.5” (216 x 114 x 38.1mm)

Weight: 0.9lbs (0.4kg)

Dimensions (Articulating Probe): Handle: 1’ x 2.1" (3.4.8 x 53.3mm)/Cable: 3.3ft (1m)

Weight: 1lbs (0.5kg)
