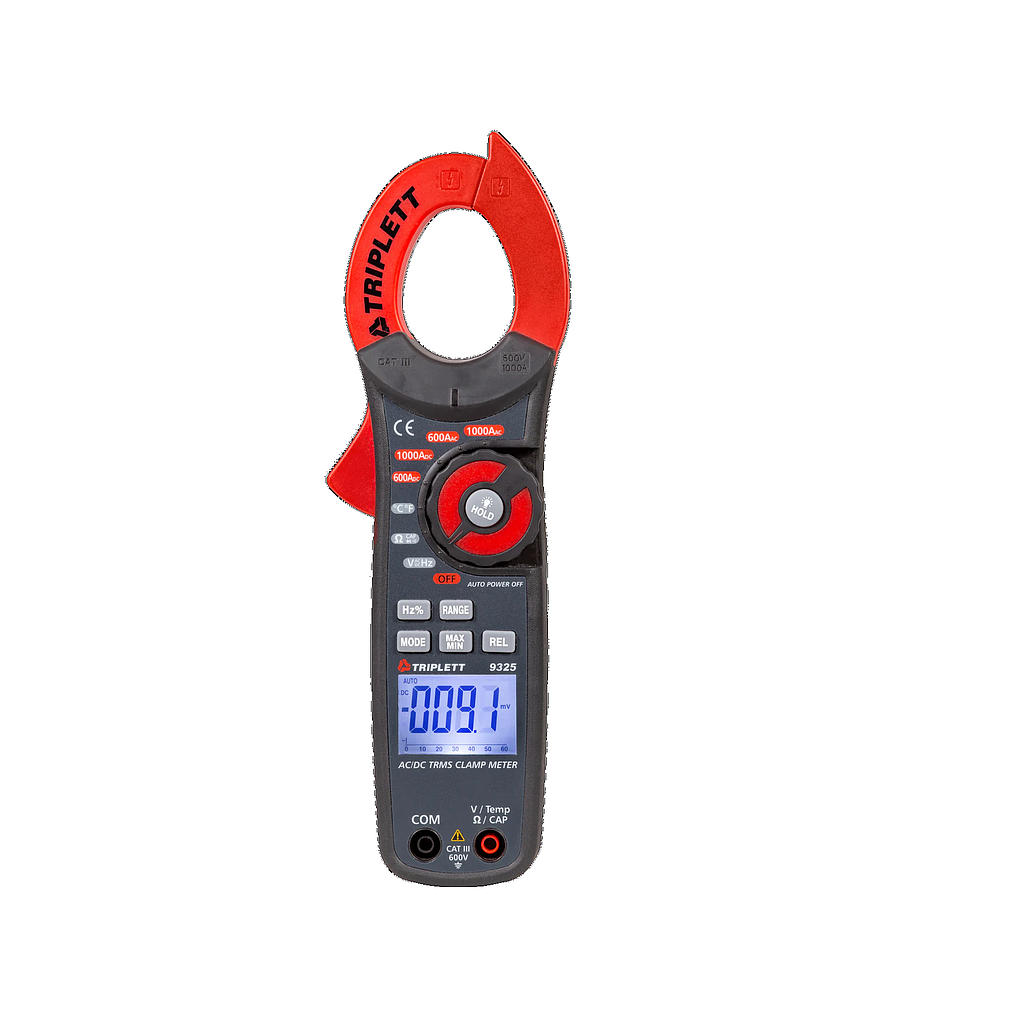

Triplett 9325 AC/DC Clamp-On Meter (1000AAC/DC, 600VAC/DC, True RMS)

True RMS/Averaging: True RMS

Display Counts: 6000 with analog bargraph

Clamp Size: 1.5" (40mm)

AC Current: 0.1 to 1000A

ACA Accuracy: ±2.8%

DC Current: 0.1 to 1000A

AC Voltage: 1mV to 600V

DC Voltage: 1mV to 600V

Resistance: 0.1Ω to 60MΩ

Temperature: -4 to 1400°F (-20 TO 760°C)

Capacitance: 0.01nF to 4000µF

Frequency: 0.01Hz to 10kHz

Duty Cycle: 0.1 to 99.9%

Safety Category: CAT III-600V

Dimensions: 9.5 x 2.75 x 1.5" (232 x 77 x 39mm)

Weight: 11.2oz (271g)
