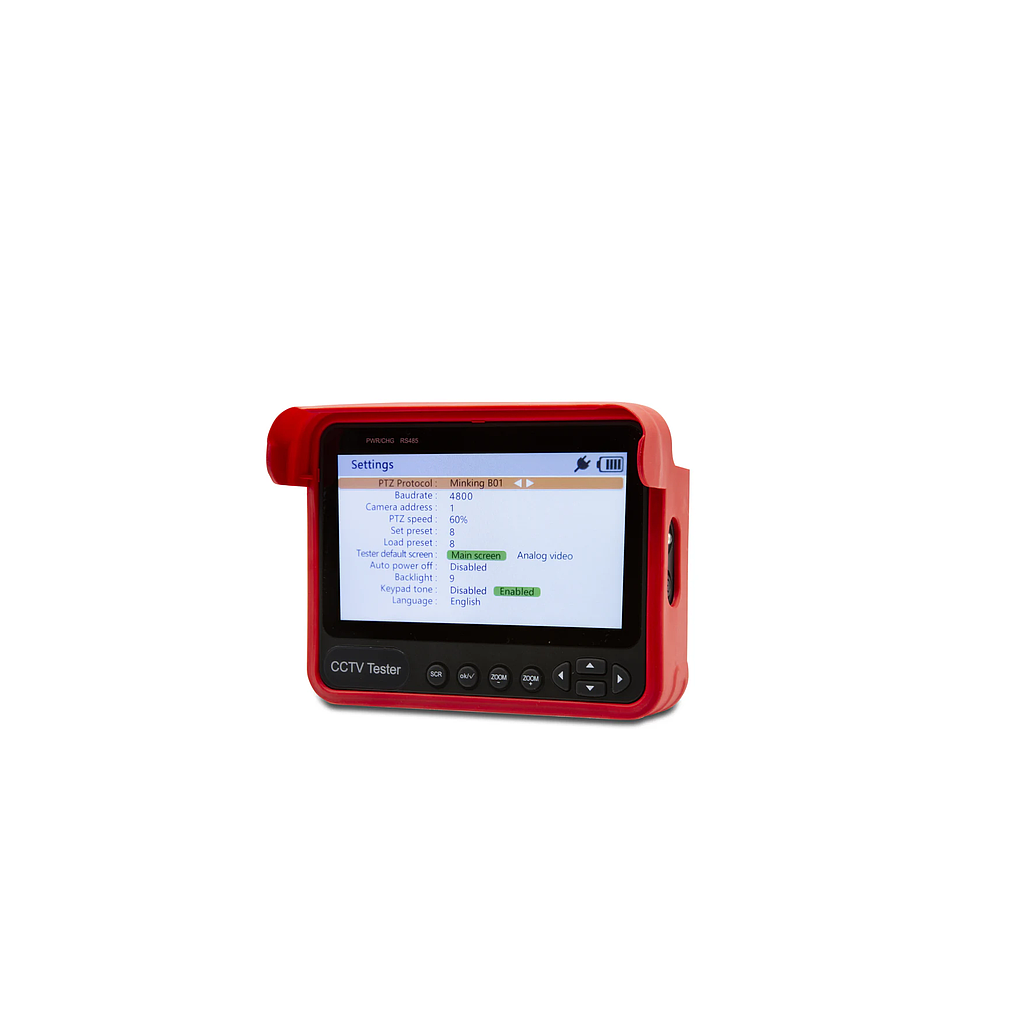

Triplett 8064 Analog Camera Tester (12V/1A)

Video Format: Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0

Test Pattern: Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P)

Signal Level: 1vpp

Input/Output: Video IN BNC, Video OUT BNC

Digital Zoom: Supports 8-level portion view

Capture : Take snapshot or record video

Output: 12V/1A power output to camera

Screen:

4 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color

Backlight with adjustable brightness

Operation : Power key, 13 control keys

Language: User selectable -- English, French, Spanish, Russian, Chinese

Auto Shut-off: Disable / 5~60 minutes

Software : Supports online upgrade through USB using your PC

Charger: 12V/1A (5.5mm) power supply

Battery: 7.4V lithium-ion polymer battery, capacity 10.4Wh

Battery runtime: Approximately 5 hours

Power Saving: Auto power off; Real-time battery level indicator

Storage: 8GB flash built in; use microUSB port to connect external device

LED Light: (2) 35lm LED lights

Dimensions/Weight: 6.9 x 4.4 x 1.5" (175 x 113 x 37mm); 3.5lbs (1.6kg)

Including

BNC, RS485, USB, audio, power, and 12V power output cables

Battery

Belt clip

Tool bag with shoulder strap

Datasheet

Manual
