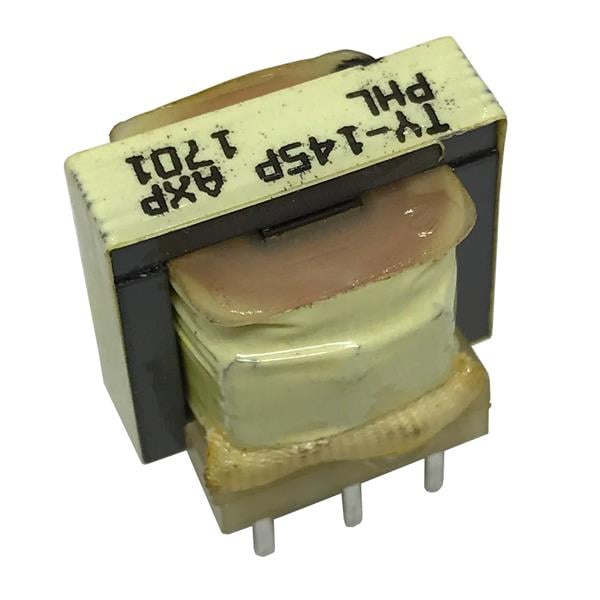

Triad Magnetics TY-145P Pin Terminal Transformers AUDIO XFMR 600ct:600ct 15mADC 100mW PCB MOUNT/TY-145P
ManufacturerTriad Magnetics(View more products from this manufacturer)
ModelTY-145P
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 17.8 mm
Height: 18.8 mm
Length: 20.6 mm
Unit Weight: 14 g
Power Rating: 100 mW (1/10 W)
Frequency Range: 200 Hz to 15 kHz
Isolation Voltage: 1.5 kV
Primary Impedance: 600 Ohms
Termination Style: Radial
Number of Channels: Single
Primary Resistance: 44 Ohms
Secondary Impedance: 600 Ohms
Secondary Resistance: 58 Ohms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: 0 C
