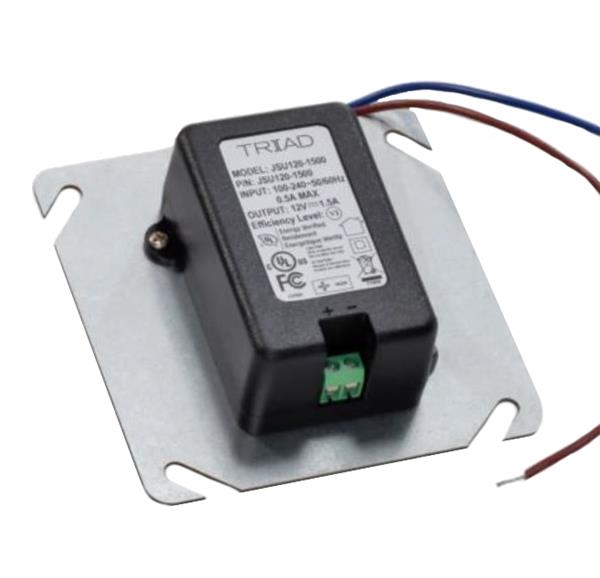

Triad Magnetics JSU120-1500 Fixed Plugs JSU120-1500 - Switchmode Power Supply - Vin: 100-240V 50/60Hz, Vout: 12.0VDC a. 1500mA cUL, FCC, NrCAN, Level VI for junction box mounting
ManufacturerTriad Magnetics(View more products from this manufacturer)
ModelJSU120-1500
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 48 mm
Height: 31 mm
Length: 75 mm
Industry: Industrial
Approvals: UL60950
Compliance: UL60950
Efficiency: 85 %
Unit Weight: 226.796 g
Output Power: 18 W
Input Voltage: 100 VAC to 240 VAC
Connector Type: Screw Terminal
Mounting Style: Wall Mount
Load Regulation: Regulated
Number of Outputs: 1 Output
DC Output Connector: Screw
Output Current-Channel 1: 1.5 A
Output Voltage-Channel 1: 12 VDC
Operating Temperature Range: 0 C to + 40 C
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
