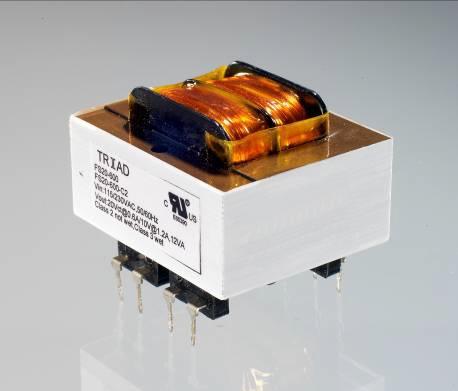

Triad Magnetics FS48-400-C2 Split Bobbin Transformer POWER XFMR 48 Vct a. 400 mA UL/cUL - Class 3, TUV, 115/230V SPLIT PACK PCB MOUNT / FS48-400-C2
ManufacturerTriad Magnetics(View more products from this manufacturer)
ModelFS48-400-C2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.88 in
Height: 1.44 in
Length: 2.25 in
Unit Weight: 362.874 g
Power Rating: 20 VA
Mounting Style: Through Hole
Primary Winding: Dual Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Solder Pin
Operating Frequency: 50 Hz/60 Hz
Primary Voltage Rating: 115 VAC, 230 VAC
Secondary Current Rating: 400 mA/800 mA
Secondary Voltage Rating: 48 V CT/24 V
