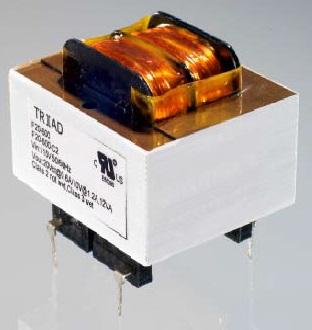

Triad Magnetics F10-250-C2 Split Bobbin Transformer POWER XFMR 10 Vct a. 250 mA UL/cUL - Class 2, 115V SPLIT PACK PCB MOUNT / F10-250-C2
ManufacturerTriad Magnetics(View more products from this manufacturer)
ModelF10-250-C2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.13 in
Height: 1.19 in
Length: 1.38 in
Unit Weight: 136.078 g
Power Rating: 2.5 VA
Mounting Style: Through Hole
Primary Winding: Single Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: Solder Pin
Operating Frequency: 50 Hz/60 Hz
Primary Voltage Rating: 115 VAC
Secondary Current Rating: 250 mA/500 mA
Secondary Voltage Rating: 10 V CT/5 V
