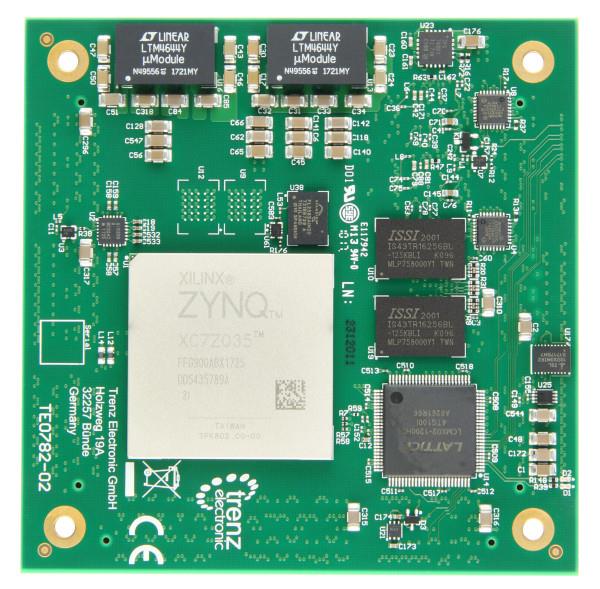

Trenz Electronic TE0782-02-82I33MA System-On-Modules - SOM High-Performance FPGA-Modul mit AMD Zynq 7035-2I, 1 GByte DDR3L, 8,5 x 8,5 cm
ModelTE0782-02-82I33MA
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Flash: 32 MB
Dimensions: 85 mm x 85 mm
Form Factor: 85 mm x 85 mm
Memory Size: 1 GB
Memory Type: DDR3
Installed RAM: 1 GB
Interface Type: eMMC, Ethernet, JTAG, QSPI, USB 2.0
Processor Type: XC7Z035-2FFG900I
Number of Cores: 2
Processor Brand: Xilinx
Processor Series: Zynq Z-7035
Maximum RAM Capacity: 1 GB
On-Board Storage Size: 8 GB
On-Board Storage Type: eMMC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
