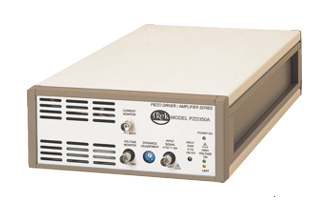

TREK PZD350A-2-L Piezo Driver/Power Amplifier

Line Voltage: 100/115V

Output Voltage Range: 0 to ±350 V DC or peak AC

Output Current Range:0 to ±200 mA

Input Voltage Range: 0 to ± 10 V DC or peak AC

Input Impedance: 90 kΩ, nominal

DC Voltage Gain: 0 to 150 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than ±500 mV

Output Noise: Less than 150 mV

Slew Rate (10% to 90%): Greater than 50 V/µs

Large Signal Bandwidth : DC to greater 8 kHz (1%distortion)

Small Signal Bandwidth (-3dB): DC to greater than 30 kHz

Dimensions: 110 mm H x 432 mm W 445 mm D

Weight:10 Kg
