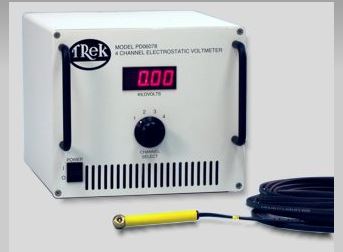

Four (4) Position Channel Switch
Selects one of the four channels outputs for display on the DPM.
Digital Panel Meter (DPM): 3½ digit LED voltage display.
Range: 0 to ±10.00 kV.
Resolution:10 V.
Monitor Output
(one for each channel)
Output Impedance: 47 Ω.
Current Output(one for each channel)
Provides a current of 4-20 mA that
represents measured voltages
-10 kV to +10kV.
Dimensions
177 mm H x 203 mm W x 228 mm D
(7” H x 8" W x 9" D).
Weight
8 lbs. (3.6 kg)
