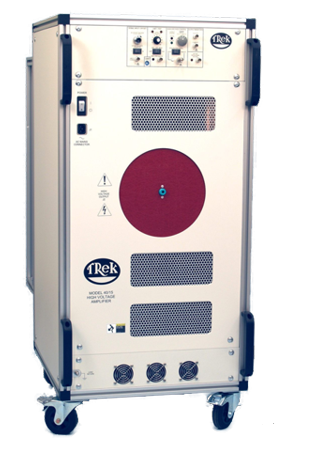

TREK 40/15-H High-Voltage Power Amplifier

Line Voltage: 200/230V

Output Voltage Range: 0 to ±40 kV DC or peak AC

Output Current Range: 0 to ±15 mA DC or peak AC

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 25 kΩ, nominal (inverting/differential option

50 kΩ nominal)

DC Voltage Gain: 4000 V/V

DC Voltage Gain Accuracy

Better than 0.1% of full scale

Offset Voltage: Less than ±4 V

Output Noise: Less than 5 V rms*

Slew Rate (10% to 90%, typical): Greater than 350 V/µs

Small Signal Bandwidth (-3dB): DC to greater than 20 kHz

Large Signal Bandwidth (2% distortion) :DC to greater than 1.4 kHz

Dimensions: 1239 mm H x 578 mm W 893 mm D

Weight: 100 kg
