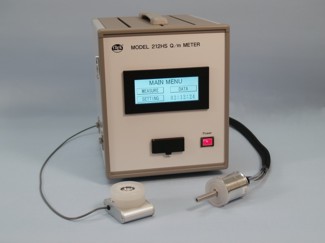

Trek 212HS-G Charge-to-Mass Ratio (Q/m) Test System (115V AC)

- Main Indicator Unit:

Dimensions: 280mm H x 220mm W x 280mm D (11.0² H x 9.0² W x 11.0² D).

Mass: 8 kg (18 lb).

- Power Requirements: 115 V AC at 48 to 63 Hz (all ±10%)

- Cell Case Unit:

Dimensions: 45mm H x 70mm W x 54mm D (1.70” H x 2.75” W x 2.13” D).

Mass: 150 g (5.29 oz).

- Stainless Steel Mesh (supplied):

Plain Woven No. 400: 28.7 mm diameter, 33 mm opening, 27.8% opening ratio.

- Absorption Nozzle Unit:

Dimensions: 1700 mm L, including tube. (66.93² L, including tube).

Mass: 350 g (12.34 oz).

- Operating Conditions:

Temperature: 5°C to 35°C
