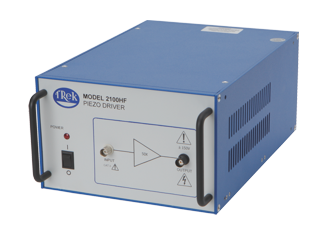

Trek 2100HF-H HIGH FREQUENCY HIGH-VOLTAGE POWER AMPLIFIER (200/230V)

Manufacturer: Trek

Model: 2100HF-H

Origin: USA

Warranty: 12 months

- Performance:

Output Voltage Range: 0 to ±150 V DC or peak AC

Output Current Range: 0 to ±300 mA DC

Input Voltage Range: 0 to ±3 V DC or peak AC

Input Impedance: 50W, nominal

DC Voltage Gain: 50 V/V

Offset Voltage: Less than ±100 mV

Output Noise: Less than 50 mV p-p

Slew Rate (10-90%): Greater than 2000 V/µs

Large Signal Bandwidth (-3 dB): DC to greater than 2.6 MHz

Small Signal Bandwidth (-3dB): DC to greater than 3 MHz

Stability:

Delay Time Less than 6 mV/ minute, noncumulative

Drift with Temp Less than 150 ns (input to output)

- Mechanical:

Dimensions: 141 mm H x 213 mm W 336 mm D (5.57” H x 8.38” W x 13.22” D)

Weight: 6.8 kg (15 lb)

HV Connector: BNC Connector

- Electrical:

Input Power: 180 to 250 V AC, at 48 to 63 Hz at 48 to 63 Hz

Supplied Accessories:

Operators’ Manual: PN: 23435

HV Output Cable: PN: 47508 (3m)

Line Cord, Spare Fuses: Determined by the geographical destination of the unit
