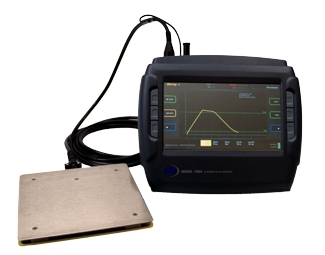

TREK 158A Kit Charged-Plate Monitor Kit

Large Signal Bandwidth: DC to 80 Hz

Decay Mode Thresholds:

Start/Stop Voltages: Programmable from 1 to ±1000 V in 1 V increments

Start/Stop Accuracy: Within ±1 V of programmed voltage

LCD Color Display (with contrast adjustment).

Navigate via touch-screen or function keys 7 inch LCD touch-screen displays

graphical readouts, numeric data, informational data, programming parameters and retrieved data

Dimensions: 53 mm H x 226 mm W x 187 mm D (2.1” H x 8.9” W x 7.4” D)

Weight: 2.2 kg (4.9 lb)

Supplied Accessories:

plus 156AP-C150X150-R3M and 156P-C25X25-S3M Charge Plates,

Charge-Plate Handle,

Walking Test Adapter,

Mini Tripod,

Carrying Case

Ion Collecting Plates (order separately) 150 mm x 150 mm (6” x 6”) plate 17397

Ion Collecting Plates (order separately) 25 mm x 25 mm (1” x 1”) plate 17375

Optional Accessories:

Charged Plate Tripod PN: DK142

Walking Test Adapter CN: 1K062

Barcode Scanner PN: M1041R

Datasheet
