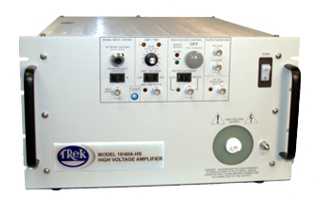

Trek 10/40A-HS-H High-Voltage Power Amplifier (200/230V)

Line voltage: 200/230V

Output Voltage Range: 0 to ±10 kV DC or peak AC

Output Current Range: 0 to ±40 mA DC or 120 mA peak AC for 1 ms* Must not exceed 40 mA rms max

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 25 kΩ, nominal

DC Voltage Gain: 1000 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than ±2 V

Output Noise: Less than 0.5 V rms*

Slew Rate (10% to 90%, typical): Greater than 900 V/µs

Large Signal Bandwidth (-3 dB): DC to greater than 23 kHz

Large Signal Bandwidth (1% distortion): DC to greater than 9 kHz, typical

(The unit will trip when the maximum bandwidth

is reached)

Small Signal Bandwidth (-3dB): DC to greater than 25 kHz

Dimensions: 279 mm H x 482 mm W 654 mm D

Weight: 24,9 Kg
