Transpak TP-702YM Mercury Wash-down Side-seal Strapping Machine (5-12mm, 1-55kg)

Capacity: Up to 60 cycles/minute

Strap Width: 5mm, 6 mm, 9 mm, or 12 mm

Tension Range

1 - 32 kg (for 5 mm, 6 mm, 9 mm)

1 - 55 kg (for 12 mm)

Weight: 281 kg

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Light tower with low strap sensor

Small Package

End of cycle and strapping error signals

Without adjustable roller table (TP-702YM-XT)

Dual Press bar

Video

Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK

Datasheet

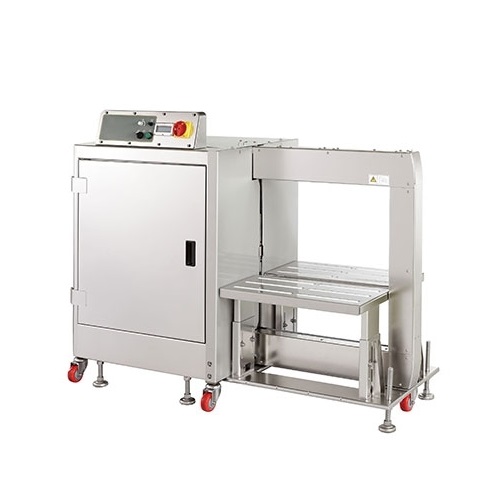

Mercury TP-702YM is a wash-down side-seal strapping machine. With stainless steel cabinet (SUS 304) and rust resistant or corrosion retardant components, TP-702YM provides maximum protections for the applications in the harsh working environment like seafood, meat, and poultry processing industries.

Features

Robust and compact strapping head

High strapping speed up to 60 straps per minute

Water proof design with internal heating device

Control panel with LCD display

Free access to strap guides (patents registered)

Downward tension force

IP54 rated protection of electric control unit

Inner strap dispenser design

Adjustable table height from 445 mm to 645 mm
