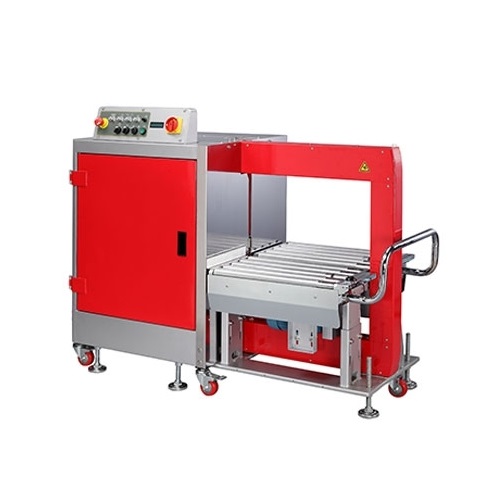

Transpak TP-702YA Mercury High-speed Side-seal Strapping Machine (5-12mm, 1-45kg)

Capacity: Up to 35 cycles/minute

Strap Width: 5mm, 6 mm, 9 mm, or 12 mm

Tension Range

1 - 32 kg (for 5 mm, 6 mm, 9 mm)

1 - 45 kg (for 12 mm)

*Higher tension is on request

Weight: 340 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Light tower with low strap sensor

Small Package

Siemens PLC

Energy saving transit with auto sleep mode

Side pusher

Dual press bar

Video

Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK

Datasheet

Mercury Transit TP-702YA is a high-speed fully automatic side-seal strapping machine. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc. Inheriting all the advantages from Mercury TP-702, it is ideal for high capacity and efficiency automated lines.

Features

Robust and compact strapping head

High strapping speed up to 35 packages per minute

Control panel with LCD display

Free access to strap guides (patents registered)

Downward tension force

Up and down stream interlock

Inner strap dispenser design

Adjustable table height from 445 mm to 645 mm
