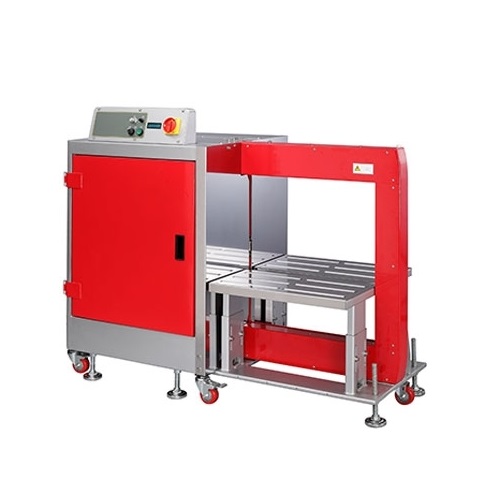

Transpak TP-702Y Mercury High-speed Side-seal Strapping Machine (5-12mm, 1-55kg)

Capacity: Up to 60 cycles/minute

Strap Width: 5mm, 6 mm, 9 mm, or 12 mm

Tension Range

1 - 32 kg (for 5 mm, 6 mm, and 9 mm)

1 - 55 kg (for 12 mm)

Weight: 294 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Light tower with low strap sensor

Small package

End of cycle and strapping error signals

Without adjustable roller table (TP-702Y-XT)

Dual Press Bar

Video

Watch as reference: TP-201Y & TP-702Y Series Side-Seal Strapping Machines - TRANSPAK

Datasheet

Mercury TP-702Y is a high-speed side-seal strapping machine built with Transpak Mercury strapping head and brushless DC motor technology. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc.

Features

Robust and compact strapping head

High strapping speed up to 60 straps per minute

Control panel with LCD display

Free access to strap guides (patents registered)

Downward tension force

Inner strap dispenser design

Adjustable table height from 445 mm to 645 mm
