Transpak TP-702RSS Mercury Automatic Strapping Machines (Small or Round Package, Stainless steel frame, 5~9mm, 1~32kg)

Capacity: Up to 65 cycles/minute

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Weight: 158 kg

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Photo-eye switch

Rear foot bar switch

Foot pedal switch

Lower adjustable table height (770-820 mm)

Stainless steel frame SUS 304 (TP-702RSS)

VIDEO

Watch as refernce: Transpak TP-702S Mercury (stainless steel frame SUS304)

Datasheet

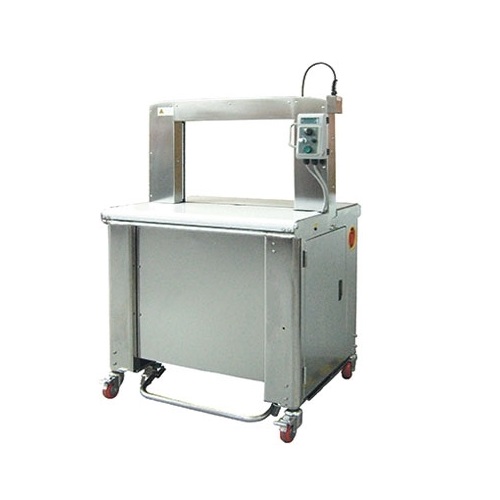

TP-702RSS is a high-speed automatic strapping machine with stainless steel frame (SUS 304). It provides reliable high speed performance for small or round package applications and is ideal for moist working environment, such as meat, seafood, poultry, and agricultural processing plants.

Features

Robust & compact mechanical strapping head

Free access to strap guides (patents registered)

Waist-high quick coil change (patents registered)

Waist-high auto strap feeding

Turnable operating control panel

Auto strap ejector

Dispenser release switch

Sensor controlled heater

Low voltage

Strap end ejector

Front foot bar switch

Adjustable table height between 820 mm and 920 mm
