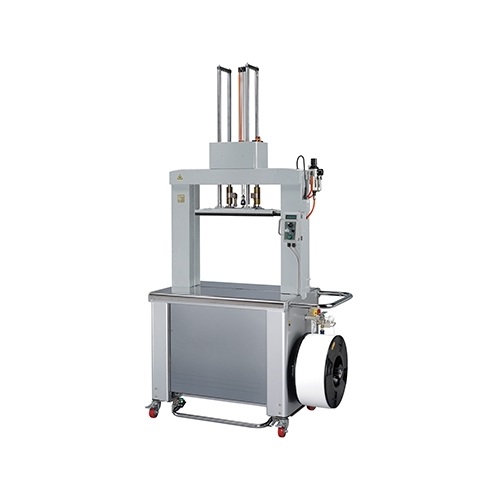

Transpak TP-702PS-12 Mercury with Dual Pneumatic Press (12mm, 1~55kg)

Capacity

Up to 44 cycles/minute (TP-702PS-12)

Strap Width

12 mm (TP-702PS-12)

Tension Range

1 to 55 kg (TP-702PS-12)

(Higher tension is on request)

Weight

226 kg (TP-702PS-12)

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Photo-eye switch

Rear foot bar switch

Foot pedal switch

Lower adjustable table height (770-820 mm)

Safety guards

Stainless steel frame SUS 304

VIDEO

Watch as refernce: Transpak TP-702S Mercury (stainless steel frame SUS304)

Datasheet

TP-702PS is a high-speed automatic strapping machine with stainless steel frame (SUS 304). It equips with dual pneumatic press for strapping compressible materials. It is ideal for moist working environment, such as meat, seafood, poultry, and agricultural processing plants.

Features

Robust & compact mechanical strapping head

Free access to strap guides (patents registered)

Dual pneumatic press

Waist-high auto strap feeding

Waist-high quick coil change (patents registered)

Turnable operating control panel

Auto strap ejector

Dispenser release switch

Sensor controlled heater

Low voltage

Strap end ejector

Front foot bar switch

Adjustable table height between 820 mm and 920 mm
