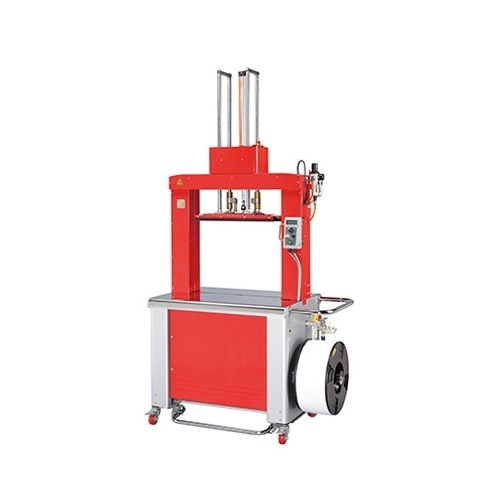

Transpak TP-702P-12 Mercury Automatic Strapping Machines (Dual press, 12mm, 1~45kg)

Capacity

Up to 44 cycles/minute (TP-702P-12)

Strap Width

12 mm (TP-702P-12)

Tension Range

1 to 45 kg (TP-702P-12)

(Higher tension is on request)

Weight

226 kg (TP-702P-12)

Electrical Requirements: 110V, 220V, 230V, 240V 50/60Hz 1PH

Options

Photo-eye switch

Rear foot bar switch

Foot pedal switch

Lower adjustable table height (770 mm - 820 mm)

VIDEO

Transpak TP-702, TP-702P, TP-702RS Mercury

Datasheet

Mercury TP-702P (with dual press) is built based on Mercury TP-702. It carries all the innovative features and user friendly designs of Mercury TP-702. TP-702P is ideal for strapping compressible material such as corrugated papers, paper sheets, corrugated boxes, plastic sheets, bags, etc.

Features

Robust & compact mechanical strapping head

Free access to strap guides (patents registered)

Dual pneumatic press

Waist-high auto strap feeding

Waist-high quick coil change (patents registered)

Turnable operating control panel

Auto strap ejector

Dispenser release switch

Sensor controlled heater

Low voltage

Strap end ejector

Front foot bar switch

Adjustable table height between 820 mm and 920 mm
