Transpak TP-702NL Fully Automatic Longitudinal Strapping Machine (for Print Media, 5-9mm, 1-32kg)

Capacity: Up to 31 bundles/minute

Bundle Size WxHxL

max 450x500x400 mm

min 120x210x10 mm

Bundle Weight: max 25 kg

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Pneumatic Source: 6 bar

Air Consumption: 8.53 liter/cycle

Weight: 475 Kg

Options

Energy saving transit with auto sleep mode

Light tower with low strap sensor (triple lamp)

Lower adjustable table height with movable casters (730 mm - 830 mm)

Reverse bundle flow

Low volume bundle bypass

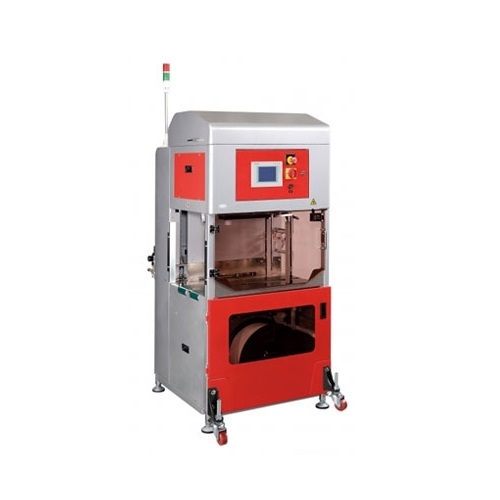

Movable casters (picture shown with this option)

Adjustable side guides

Lever switch for bundle with wrapping

Datasheet

TP-702NL is a fully automatic longitudinal strapping machine. The bundle is strapped in the transport direction.

Features

Robust & compact mechanical strapping head

Automatic self-adjusting strap chute (patents registered)

Automatic tension control for various bundle dimensions (patents registered)

Up and down stream interlock with complete plug connection

Fully automatic operation with variable conveyor speed

Siemens PLC and touch panel

Free access to strap guides (patents registered)

Easy access to strapping head (patents registered)

Strap end ejector

Adjustable table height between 800 mm and 900 mm

Auto strap ejector
