Transpak TP-702NAD Cross Strapping System with Angle Diverter (for Print Media, 1~32kg)

Capacity: Up to 25 bundles/minute

Bundle Size W x L x H

Max: 500 x 500 x 390 mm

Min: 210 x 210 x 10 mm

Bundle Weight: max 25 kg

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Pneumatic Source: 6 bar

Air Consumption: 5.5 liter/cycle

Weight: 1,045 Kg

Options

Energy saving transit with auto sleep mode

Light tower with low strap sensor (triple lamp)

Additional soft press for convex bundle

Automatic side squaring

Low volume bundle bypass

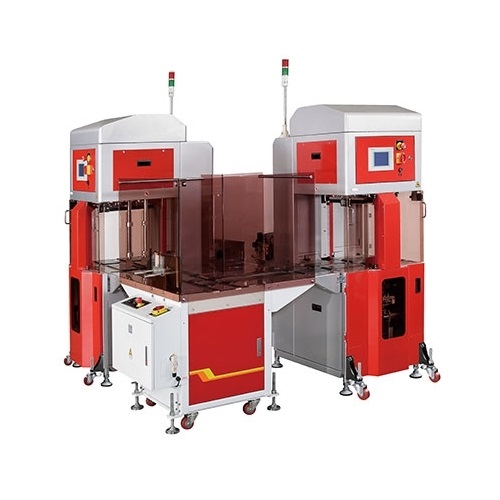

Movable casters (picture shown with this option)

Lever switch for bundle with wrapping

Safety guards (picture shown with this option)

Datasheet

TP-702NAD is a fully automatic strapping system with angle diverter for cross strapping requirement - meeting different plant layout requirement.

Features

Robust & compact mechanical strapping head

Automatic tension control for various bundle dimensions (patents registered)

Dual pneumatic press

Up and down stream interlock with complete plug connection

Fully automatic operation with variable conveyor speed

Siemens PLC and touch panel

Free access to strap guides (patents registered)

Easy access to strapping head (patents registered)

Strap end ejector

Auto strap ejector

Adjustable table height between 800 mm and 900 mm
