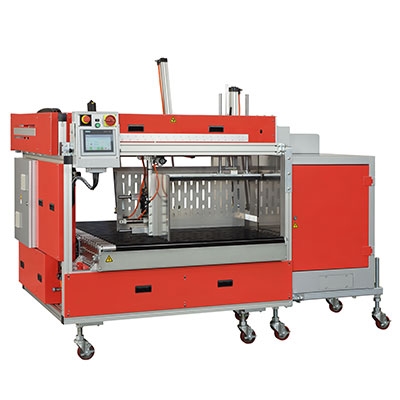

Transpak TP-702CTRS High Speed Strapper for Specialty Folder Gluer Boxes (5-12mm, 1-55kg)

The new TP-702CTRS is designed to strap specialty boxes, including crash lock boxes, four corner tray, and other folded type boxes from shingled-stream folder gluer output.

Maximum Bundle Size

950 x 400 x 1300 mm (arch width 1000mm)

1250 x 400 x 1300 mm (arch width 1300 mm)

1550 x 400 x 1300 mm (arch width 1600 mm)

Capacity: Up to 23 bundles/minute (single strap)

Strap Width: 5 mm, 6 mm, 9 mm, or 12 mm

Strap Tension

1 - 32 kg (for 5 mm, 6 mm, 9 mm)

1 - 55 kg (for 12mm)

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Light tower with low strap sensor

Foot pedal switch

Uplifted support

Powered top conveyor

Additional backstop

Video

Watch as reference: TP-702CTRS High Speed Corrugated Strapper for Specialty Folder Gluer Boxes - TRANSPAK

Datasheet

The new TP-702CTRS is designed to strap specialty boxes, including crash lock boxes, four corner tray, and other folded type boxes from shingled-stream folder gluer output. The clever side-pusher and backstop designs ensure of the best stack condition after strapping and protect delicate boxes from damage without sacrificing its high speed. TP-702CTRS is an efficient squaring and strapping solution for specialty folder gluer products.

Features

Compact & robust strapping head

Ascending backstop with sensor

Easy maintenance

Siemens PLC and HMI

Quick and effortless changeover

Free access to strap guides (patents registered)

Auto strap ejector

Strap end ejector

Sensor controlled heater

Adjustable table height between 700mm and 1000 mm
