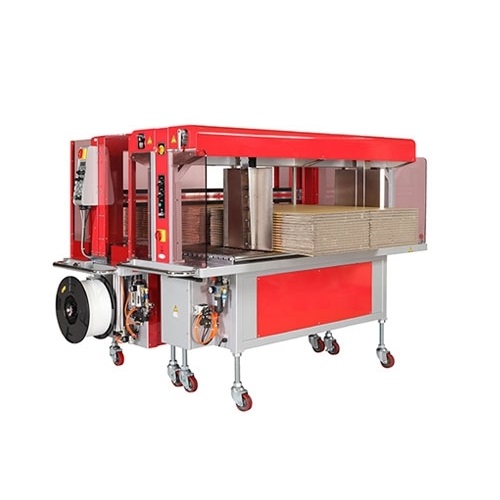

Transpak TP-702CCQ Corrugated 3-Side Bundle Squaring and Strapping System (1-32kg)

Arch Size (W x H): 1650 x 450 mm

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg

Capacity

Up to 26 bundles/minute (single strap)

Up to 20 bundles/minute (double straps)

(Model: TP-702CCQ-L)

Minimum Bundle Size: 200 mm(W) x 20 mm(H) x 300 mm(L)

Bundle Weight: max 40 kg

Conveyor Speed: 15 – 60 M/minute

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Siemens HMI (touch panel)

Light tower with low strap sensor

Foot pedal switch

Strapping cycle counter

Squaring plate extension for bundle length up to 1520 mm

Adjustable backstop

Video

Watch as reference: TP-702CCQ Corrugated 3-Side Bundle Squaring and Strapping System

Datasheet

TP-702CCQ is built based on TP-702C high speed corrugated strapper combined with the 3-side squaring station CC-BSS. It carries all the innovative features of TP-702C. TP-702CCQ offers high strapping productivity with the most cost-effective bundle squaring solution for corrugated industry.

Features

Compact & robust strapping head

3-side squaring bundle control

Siemens PLC

Free access to strap guides (patents registered)

Hinged roller table

Auto strap ejector

Patented jammed-strap ejection device

Full-width pneumatic press

Multiple strap function

Variable conveyor speed

Adjustable pressure on press and squaring
