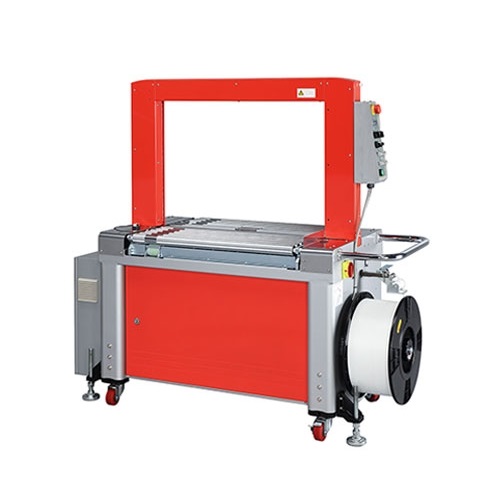

Transpak TP-702A Mercury Transit Fully Automatic Strapping Machines (Roller-driven, 5~12mm, 1~45kg)

Strap Width: 5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)

1-45 kg (for 12 mm)

Capacity: Up to 36 packages/minute (Cycle speed up to 65 cycles/minute)

Maximum Package Weight: 80 kg

Weight: 287 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH

220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Siemens PLC

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Strapping in the center of the bundle & strapping controlled with 2 photo eyes

Lower adjustable table height (750 mm – 900 mm)

Dual channel E-Stop

VIDEO

Watch as refernce: TP-702B Fully Automatic Strapping Machines - TRANSPAK

Datasheet

Mercury Transit TP-702A is a fully automatic strapping machine with roller-driven table for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702A is the fastest and most reliable strapping machine for general applications on the market today.

Features

Robust & compact mechanical strapping head

Roller-driven table for heavy load packages

Waist-high auto strap feeding

Free access to strap guides (patents registered)

Electronic tension control

Auto strap ejector

Strap end ejector

Hinged top plates

Multiple strap function

Variable conveyor speed between 15 and 60 meters/minute

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Good for heavy packages

Adjustable table height between 800 mm and 900 mm
