Transpak TP-601B Tauris Transit (Belt-driven, 8-12mm, 7-70kg)

Strap Width: 8 mm, 9 mm or 12 mm

Tension Range

7 - 70 kg

(requires safety devices to meet CE regulations)

Capacity

Up to 18 packages/minute (60Hz)

(Cycle speed up to 29 cycles/minute)

Table Height: 825 mm

Weight: 325 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Siemens PLC

Variable conveyor speed: from 18 meters/minute to 42 meters/minute

Safety guards

Foot pedal switch

VIDEO

Watch as reference: Transpak TP-601B Tauris Transit

Datasheet

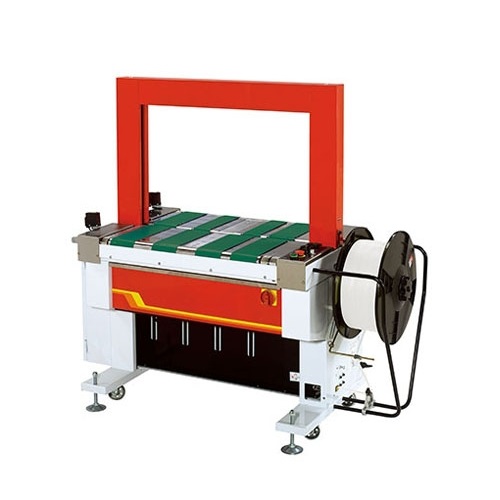

Tauris Transit TP-601B is a fully automatic strapping machine with belt-driven table. It is a simple and the most reliable strapping machine for general purpose applications on the market.

Features

Reliable and robust strapping head

Auto strap feeding

Electronic tension control

Auto strap ejector

Belt transmission

Hinged top plates

Conveyor speed: 30 meters/minute

Multiple strap function for single, double, continuous strapping, or transit mode

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Strap end ejector
