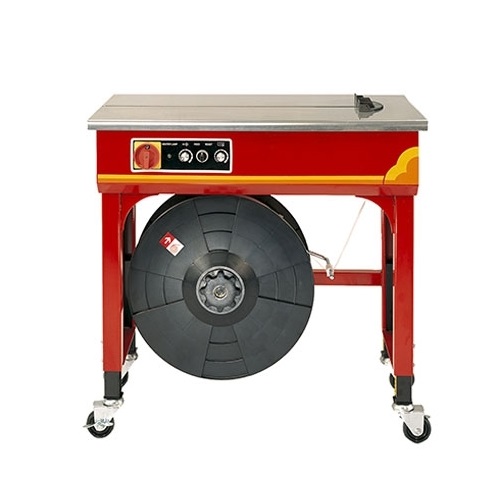

Transpak TP-502-15 Semi Auto Strapping Machine (12~15.5 mm, 8~45kg)

ManufacturerTranspak(View more products from this manufacturer)
ModelTP-502-15
OriginTaiwan
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Electrical Requirements: 110V/220V/230V/240V (50/60Hz) 1PH

Strapping Capacity: 2.5 seconds / Cycle (60Hz)

Strap Requirement: Strap width: 12 ~ 15.5 mm; Strap thickness 0.5 ~ 0.65 mm"

Tension Range: 8 to 45 kg

Dimension (W) × (D) × (H): 850×560×780mm

Table Height: 780 ~ 950 mm

Machine Net Weight: 70 kg

Maximum Package Weight: 80 kg

Minimum Package Size: 80W × 20H mm

Strap Core Inner Diameter: 200 mm / 230mm / 280 mm (interchangeable

Power Consumption: 0.3 kW

Temperature of working environment: 5 ~ 40℃

Option

● Safety switch under table top

Video

Watch as reference: TRANSPAK TP 502 Semi Auto Strapping Machine

Datasheet




Main Features
● Compact Mechanical Strapping Head With 30% less moving parts than conventional machines substantially reduces maintenance issues. There are no belts, chains or pulleys. Extremely low noise sealing head.
● Electronic Tension Control Adjustment for wider strap tension (8-45 kg) can be easily done on the front control panel.
● Jog Switch Using the “Jog switch” to adjust the machine to exactly the correct setting for maintenance
● Weld-Cooling Timer The weld cooling time can be increased to insure high joint efficiency under high tension
● Large Main Switch The lockable CE rated large main power switch increases safe operation of the machine.
● Adjustable Table Height The table height is adjustable to any height between 780 mm and 950 mm.
