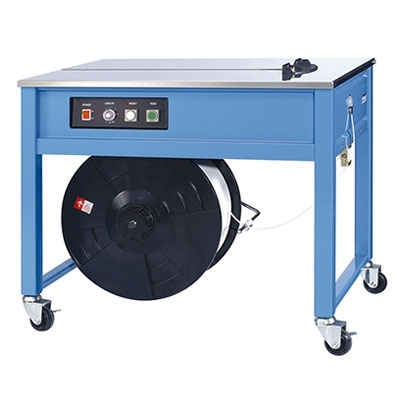

Transpak TP-202CE Semi Auto Strapping Machine (6-15.5mm, 15-45kg)

Electrical Requirements: 110V/220V/230V/240V (50/60Hz) 1PH

Strapping Capacity: 2.5 seconds / Cycle (60Hz)

Strap Requirement

Strap width: 6 ~ 9 mm with strap thickness: 0.5 ~ 0.65 mm

Strap width: 12 ~ 15.5 mm with strap thickness: 0.5 ~ 0.75 mm

Tension Range: 15 - 45kg

Dimension (W) × (D) × (H): 902×586×760mm

Table Height: 760 mm

Machine Net Weight: 85 kg

Maximum Package Weight: 100 kg

Minimum Package Size: 80W × 20H mm

Strap Core Inner Diameter: 200 mm / 230mm / 280 mm (interchangeable

Power Consumption: 0.25 kW

Temperature of working environment: 5 ~ 40℃

Video

Watch as reference: TRANSPAK TP 202 Semi Auto Strapping Machine

Datasheet
