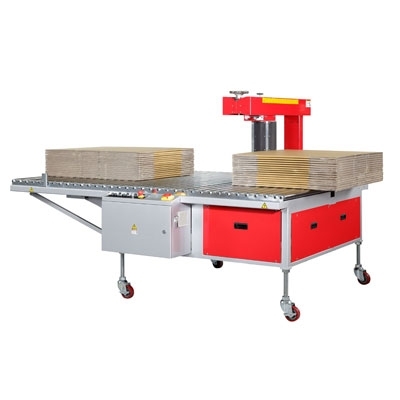

Transpak C-BT-M Bundle Turner for Corrugated Carton

Conveyor Speed

Infeed: 15 – 65 m/minute

Exit: 18 – 75 m/minute

Table Size (W x D): 1662 x 1880 mm

Minimum Bundle Size (W x H x L): 200 x 20 x 300 mm

Bundle Weight: max 35 kg

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Datasheet

C-BT Bundle Turner is designed for turning the bundle for downstream strapping operation. It is an ideal device for connecting the casemaking line to strap in the carton flute direction.

Features

Suitable for various bundle dimensions

Table height is adjustable from 700 mm to 1000 mm

Up and down stream interlock with complete plug connection

Robust and sturdy frame
