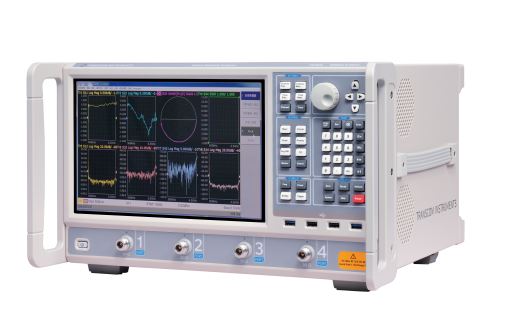

TRANSCOM T5230A Vector Network Bench-top Analyzer

Name: TRANSCOM T5230A Vector Network Bench-top Analyzer
Brand: TRANSCOM

ManufacturerTRANSCOM(View more products from this manufacturer)

ModelT5230A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

T5230A is a high performance VNA, large frequency range, large dynamic range, low Noise level, low trace noise, it can be widely used for microwave device measurement in wireless communication, broadcast, TV device, radar device and semiconductor.

Large frequency range: 300kHz to 3.0GHz
Large dynamic range: >125dB (IFBW=10Hz), 130dB typ.
Low noise level: <-120dbm ifbw="10Hz)</li">
Low trace noise: 1mdB rms (IFBW=3kHz)
High measurement speed: 125μs/point (IFBW=30kHz)
High effective directivity: >45dB
Remote Control: LAN/GPIB/USB
Very low power consumption
“One-key-test” solution

Datasheet

Measurement Range
Impedance	50Ω or 75Ω
Test port connector	N-type, female
Number of test ports	2
Frequency range	300kHz to 3GHz
Full CW frequency accuracy	±5×10^-6
Frequency resolution	1Hz
Number of measurement points	2 to 10001
Measurement bandwidths	1Hz to 30kHz (with 1/1.5/2/3/5/7 steps)
Dynamic range (IF bandwidth 10 Hz)	125dB, typ.130dB
Measurement Speed
Measurement time per point	125μs
Source to receiver port switchover time	＜10ms
Typical cycle time versus number of measurement points
Number of points (IFBW 30kHz)	51	201	401	1601
Uncorrected (Start 300 kHz, stop 10 MHz)	13ms	52ms	104ms	413ms
Full two-port calibration (Start 300 kHz, stop 10 MHz)	46ms	123ms	226ms	844ms
Uncorrected (Start 10 MHz, stop 3 GHz)	7ms	27ms	53ms	207ms
Full two-port calibration (Start 10 MHz, stop 3 GHz)	34ms	73ms	125ms	434ms
Manufacturer	Transcom

Option:

1- 5301N50 High Precision, DC to 3GHz, 50Ω, N-type Calibration Kit Set

5301N50-30101 High Precision, SOL(N-f), 50Ω, DC to 3GHz

5301N50-30102 High Precision, SOL(N-m), 50Ω, DC to 3GHz

5301N50-30103 High Precision, THROUGH N(f) - N(f), 50Ω, DC to 3GHz

5301N50-30104 High Precision, THROUGH N(m) - N(m), 50Ω, DC to 3GHz

2- 5901N50 High Precision, DC to 9GHz, 50Ω, N-type Calibration Kit Set

5901N50-90001 High Precision, SHORT N(f), 50Ω, DC - 9GHz

5901N50-90003 High Precision, OPEN N(f), 50Ω, DC - 9GHz

5901N50-90005 High Precision, LOAD N(f), 50Ω, DC - 9GHz

3- 5901N50-90007 High Precision, THROUGH N(f) - N(f), 50Ω, DC - 9GHz

5901N50-90002 High Precision, SHORT N(m), 50Ω, DC - 9GHz

5901N50-90004 High Precision, OPEN N(m), 50Ω, DC - 9GHz

5901N50-90006 High Precision, LOAD N(m), 50Ω, DC - 9GHz

5901N50-90008 High Precision, THROUGH N(m) - N(m), 50Ω, DC - 9GHz

4- 5902S50 High Precision, DC to 9GHz, 50Ω, SMA Calibration Kit 5,050

5902S50-90201 High Precision, SOL(SMA-f), 50Ω, DC to 9GHz

5902S50-90202 High Precision, SOL(SMA-m), 50Ω, DC to 9GHz

5902S50-90203 High Precision, THROUGH SMA(f) - SMA(f), 50Ω, DC to 9GHz

5902S50-90204 High Precision, THROUGH SMA(m) - SMA(m), 50Ω, DC to 9GHz

5- T5_RFCAB-NmNm_18101 Test Cable - DC to 18GHz, 50Ω, N(m)-N(m) , 1m

6- T5_RFCAB-NmSMAm_18102 Test Cable - DC to 18GHz, 50Ω, N(m)-SMA(m), 1m

7- T5_RFCAB-NmNm_60101 Test Cable - DC to 6GHz, 50Ω, N(m)-N(m), VSWR<1.1, IL<1.2db span="">

8- T5_RFCAB-NmSMAm_60102 Test Cable - DC to 6GHz, 50Ω, N(m)-SMA(m), VSWR<1.1, IL<1.2db span="">

9- VNA_ATE Automated test software for VNA

10- T5_RM VNA rack mount kit

11- T5_FH VNA front handle kit
