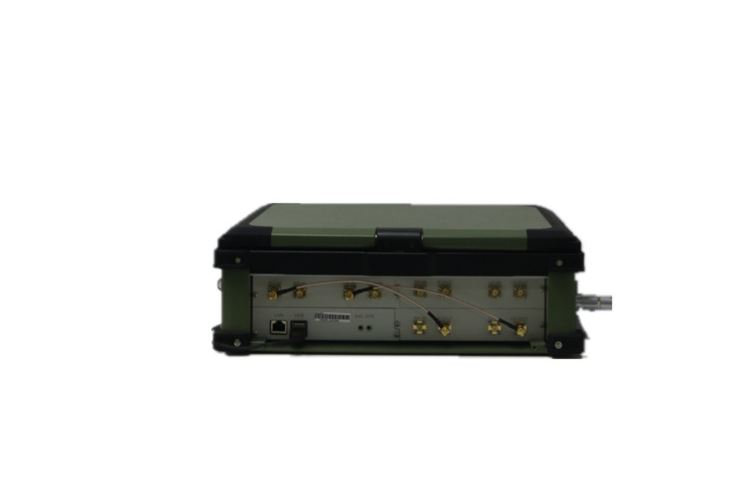

Transcom RHS All-In-One Radio Monitoring and Analysis Equipment

Digital scan
Full span spectrum scan
Waterfall diagram: waterfall Three-dimensional display of spectrum over frequency, time and color-coded signal level
Scan Speed:3GHz/s
Scan Resolution: 12.5KHz/25KHz
Spectrum display: average, max. hold, min. hold, expand/reduce
IF scan
Spectrum display: 4096 (FFT points)
Spectrum display: average, max. hold, min. hold, expand/reduce
Waterfall diagram: waterfall Three-dimensional display of spectrum over frequency, time and color-coded signal level
Resolutions: 390.625Hz to 25KHz(7 totally)
IF demodulation
AM/FM demodulation: 3.2KHz to 300KHz(11 kinds of bandwidths supported)
Audio Filtration: 8KHz/16KHz/32KHz(supported sampling rate)，16-bit PCM code
Audio bandwidth: 3.2KHz to 300KHz (11 totally)
Data sampling
I&Q data sampling, local storage
Sampling bandwidth：3.2KHz to 1MHz(11 optional)
Digital record
Recordable in local hard disk
Structure
All integrated in one case
