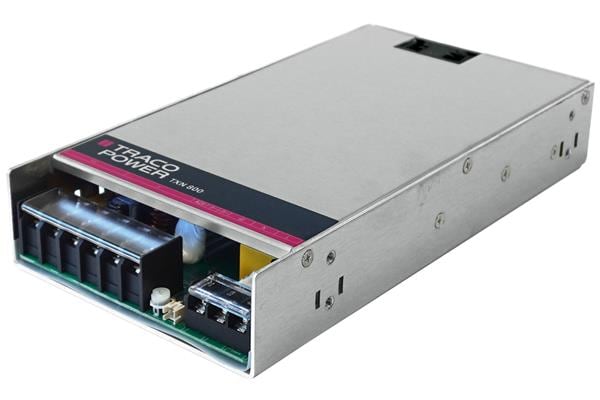

TRACO Power TXN 800-112 Industrial Power Supply 756W 12V 63A low profile metal case

Width: 127 mm (5 in)

Height: 40.5 mm (1.594 in)

Length: 230 mm (9.055 in)

Industry: Industrial

Dimensions: 230 mm x 127 mm x 40.5 mm

Efficiency: 90 %

Unit Weight: 800 g

Output Power: 756 W

Input Voltage: 90 VAC to 264 VAC, 140 VDC to 340 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Power - Convection: 4 kV

Power - Forced Air: 8 kV

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 63 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
