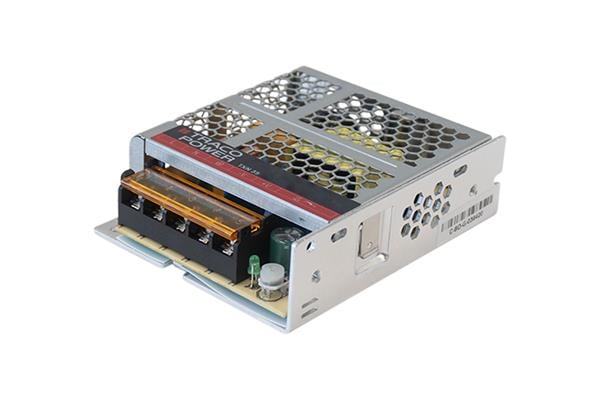

TRACO Power TXN 35-105 Industrial Power Supply 35W 5V 7A low profile metal case

Width: 82 mm (3.228 in)

Height: 30 mm (1.181 in)

Length: 99 mm (3.898 in)

Industry: Industrial

Dimensions: 99 mm x 82 mm x 30 mm

Efficiency: 82 %

Unit Weight: 200 g

Output Power: 35 W

Input Voltage: 90 VAC to 264 VAC, 140 VDC to 340 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Not Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Power - Convection: 4 kV

Power - Forced Air: 8 kV

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 7 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
