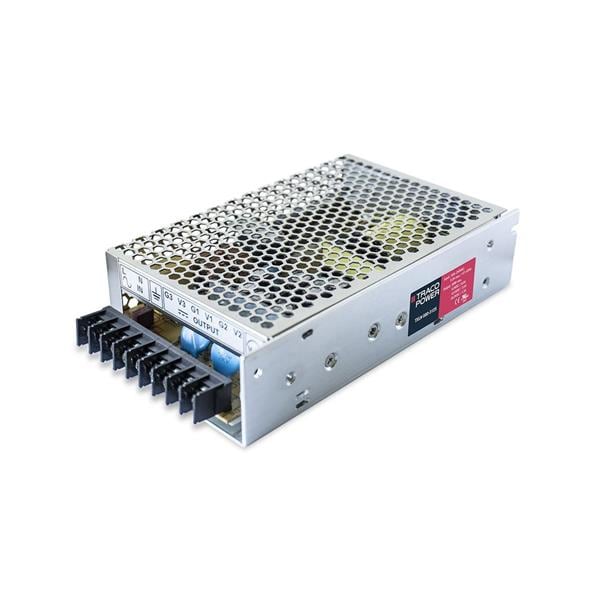

TRACO Power TXLN 080-3125 Encased 82W 5V 8A, 12V 3.5A, 24V 1.5A

Width: 95 mm (3.74 in)

Height: 38 mm (1.496 in)

Length: 159 mm (6.26 in)

Industry: Industrial

Efficiency: 82 %

Unit Weight: 600 g

Output Power: 80 W

Input Voltage: 88 VAC to 264 VAC, 125 VDC to 375 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 3 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 8 A

Output Current-Channel 2: 3.5 A

Output Current-Channel 3: 1.5 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
