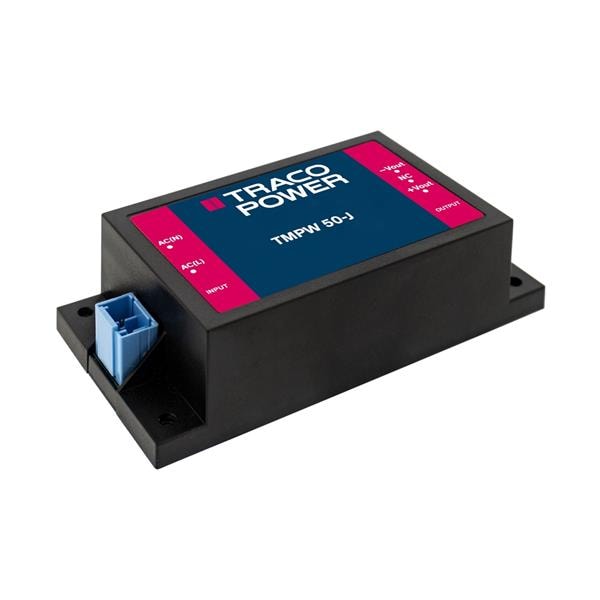

TRACO Power TMPW 50-124-J 3-Phase 50W 24V 2083mA Encap Chassis mount

Width: 48.3 mm (1.902 in)

Height: 25.4 mm (1 in)

Length: 97 mm (3.819 in)

Industry: Industrial

Approvals: EN 60335-1, IEC/EN/UL 62368-8

Dimensions: 48.3 mm x 25.4 mm x 97 mm

Efficiency: 88 %

Unit Weight: 180 g

Output Power: 50 W

Input Voltage: 90 VAC to 305 VAC, 100 VDC to 250 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2.083 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
