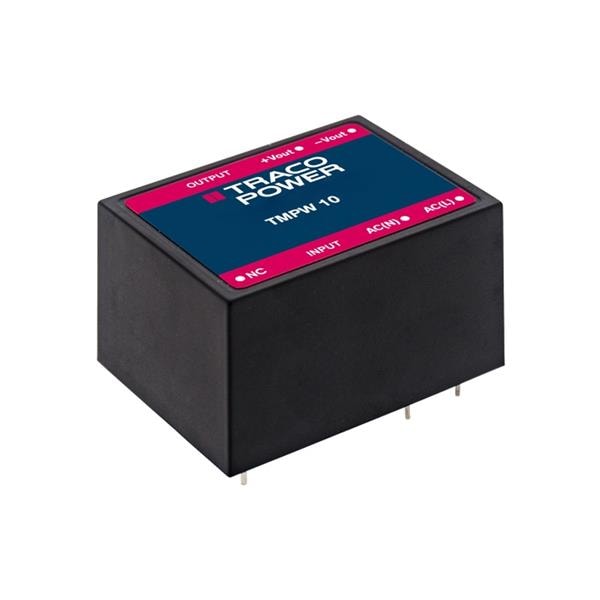

TRACO Power TMPW 10-115 AC-DC Power Modules 10W 15V 667mA Encap PCB mount

Width: 27.5 mm

Height: 20 mm

Length: 37 mm

Industry: Industrial

Approvals: EN 60335-1, IEC/EN/UL 62368-3

Dimensions: 27.5 mm x 20 mm x 37 mm

Unit Weight: 31 g

Output Power: 10 W

Input Voltage: 90 VAC to 305 VAC, 100 VDC to 250 VDC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 667 mA

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
