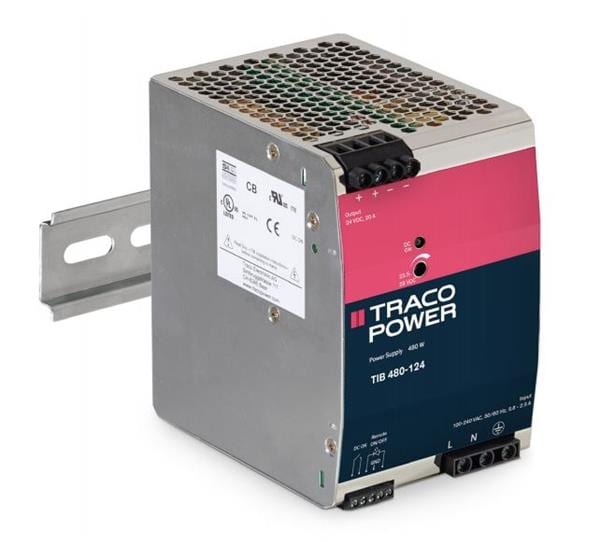

TRACO Power TIB 480-124EX Power Supplies 480W 24V 20A DIN Rail ATEX Cert

Width: 82 mm (3.228 in)

Height: 124.2 mm (4.89 in)

Length: 118.6 mm (4.669 in)

Industry: Industrial

Input Type: 1-Phase / Single Phase

Unit Weight: 1.018 kg

Output Power: 480 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4.25 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
