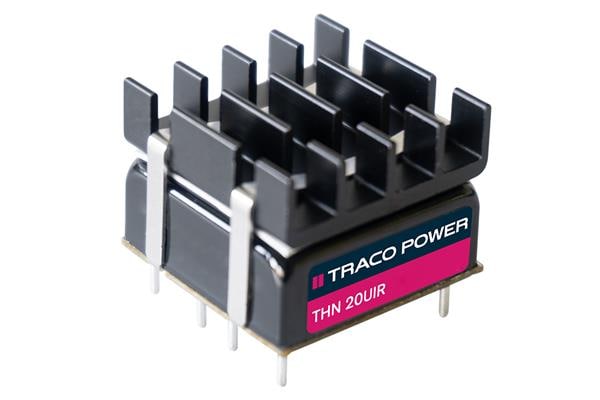

TRACO Power THN 20-3611UIR Isolated 20W 9-75Vin 5.1Vout 4A 1 x 1 Metal Case, Railway
ManufacturerTRACO Power(View more products from this manufacturer)
ModelTHN 20-3611UIR
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 25.4 mm (1 in)
Height: 18.7 mm (0.736 in)
Length: 25.4 mm (1 in)
Industry: Industrial
Dimensions: 25.4 mm x 25.4 mm x 18.7 mm
Application: Railway Applications
Unit Weight: 17 g
Input Voltage: 9 VDC to 75 VDC
Mounting Style: Through Hole
Isolation Voltage: 3 kV
Number of Outputs: 1 Output
Input Voltage - Max: 75 V
Input Voltage - Min: 9 V
Input Voltage, Nominal: 36 V
Output Current-Channel 1: 4 A
Output Voltage-Channel 1: 5.1 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
