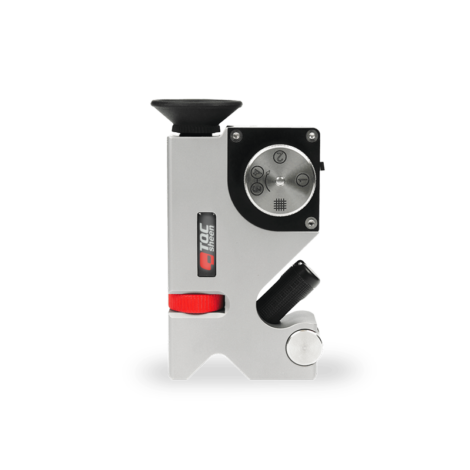

TQCSheen SP1100 SuperPIG Paint Inspection Gauge III (2~1800 microns)

Range: 2 to 1800 microns / 0.1 to 70 mils

Microscope: Magnification 50X (with graduation-scale)

Scale range: 0–1.8mm/ 0–0.07 inch (rectilinear measured)

Battery: 4 x AG13/LR44

Material: Titanium anodised aluminium

Width: 25mm

Height: 110mm

Length: 65mm

Scope of Supply:

Super Pig III destructive paint inspection gauge

Black marker

Knives 1, 2 and 4 (sp1111, SP1112, SP1116)

Hex diagonal wrench

Black leather case with belt clip

Accessories:

Knives

SP1111: Cutter No. 1, 20-1800μm / 1-70 mils, for SuperPIG II / III

SP1112: Cutter No. 2, 10-900μm / 0.5-35 mils, for SuperPIG II / III

SP1113: Cutter No. 3, 5-450μm / 0.25-17.5 mils, for SuperPIG II / III

SP1114: Cutter No. 4, 2-180μm / 0.1-7 mils, for SuperPIG II / II

Spare Cross Cut knife acc. To DIN-ISO 2409, ASTM D3359, 6 teeth

SP1702: Teeth distance 1mm

SP1703: Teeth distance 2mm

SP1704: Teeth distance 3mm

Spare Cross Cut knife acc. to ASTM D3359 <2009, 11 teeth

SP1705: Teeth distance 1mm

SP1706: Teeth distance 1.5mm
