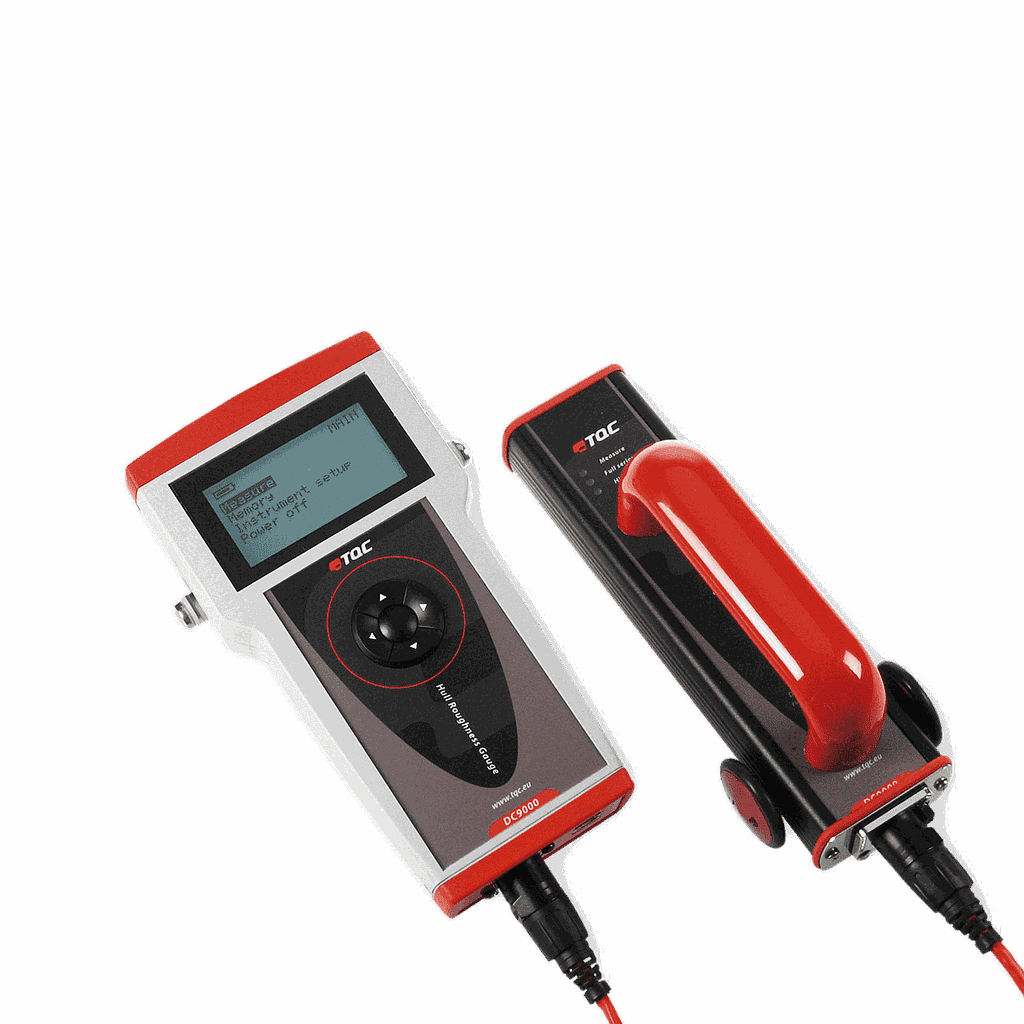

TQCSheen DC9000 Hull Roughness Gauge (50mm/s; ±5 microns)

Accuracy: ±5 microns/ <2%

Memory: Enough for 4 complete surveys done both in- and out-docking, totally over 10.000 readings

Speed: 50mm/s, with speed indication LED in the Sensor unit

Interface: USB serial to PC connection

Power: 4x AA type Alkaline Cells

Dimensions and weight:

Sensor dimensions (DxWxH): 205x80x40mm

Sensor weight: approx. 630 g

Control unit dimensions (DxWxH): 200x115x40mm

Control unit weight: approx. 350 g

Scope of suppy:

TQC Hull roughness control unit with neck-strap

TQC Hull Roughness Sensor

TQC Hull Roughness Sensor cable

DC9015 Calibration plate

USB thumb drive with software

USB connection cable for PC

4 x AA batteries included

Datasheet

Manual
