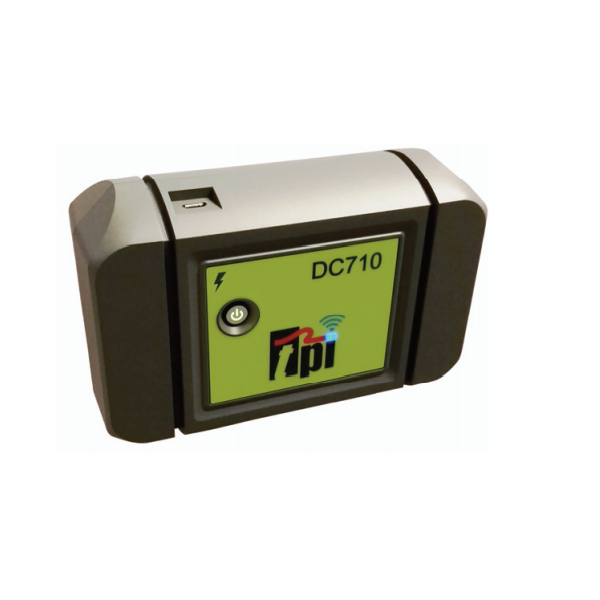

TPI DC710 Combustion Analyzer

Carbon Monoxide (CO) Range: 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater

Oxygen (O2) Range: 0 to 25%; +/-0.3% O2

Temperature Range: -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F)

Pre-programmed Fuels: Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse

Battery Type: Rechargeable Li-ion (3.7V/2600mA)

Battery Life: >6 hours typical

Charger Input: USB Connection

Operating Temperature; -10°C to 50°C (-14°F to 122°F)

Dimensions (W x L x D): 150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”)

Weight: 490g (1.1 lb)

Gas Sensor Type: Electrochemical field replaceable smart sensors (O2 and CO)
